High ceilings, metal frame, open volume: a hangar is not lit like a garage. Drag the handle to see the difference.

0.55 hex/m²Basic Density
+50%Beyond 3 m
6,500 KNeutral white
Après installation Hexeli
Avant installation
Before After

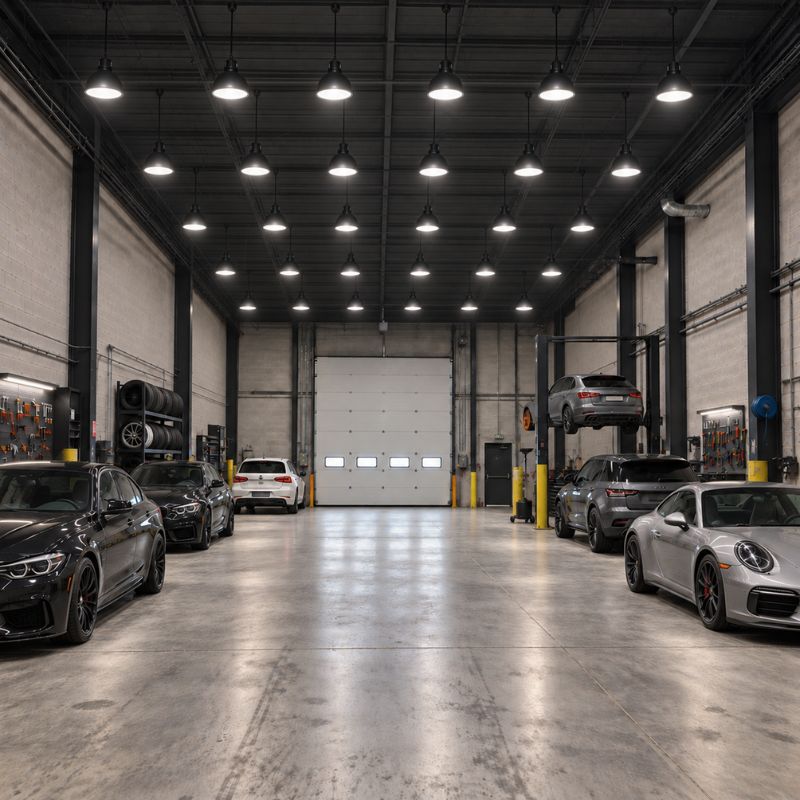

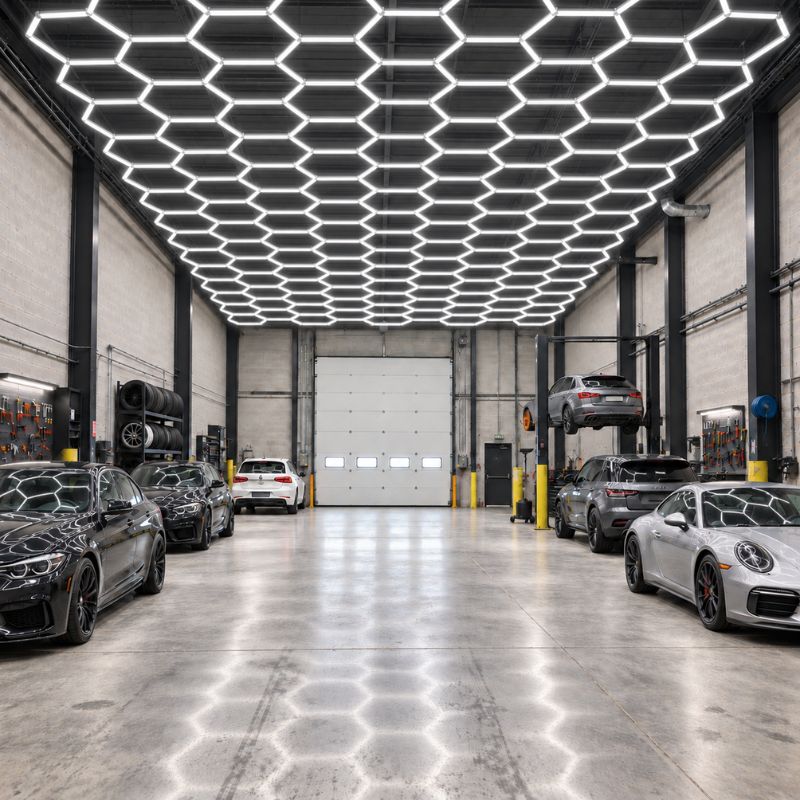

Before: a few high spotlights create uneven lighting and many shadowed areas. After: installed under the framework, the LED grid diffuses a powerful and uniform light throughout the workshop.

Après installation Hexeli
Avant installation
Before After

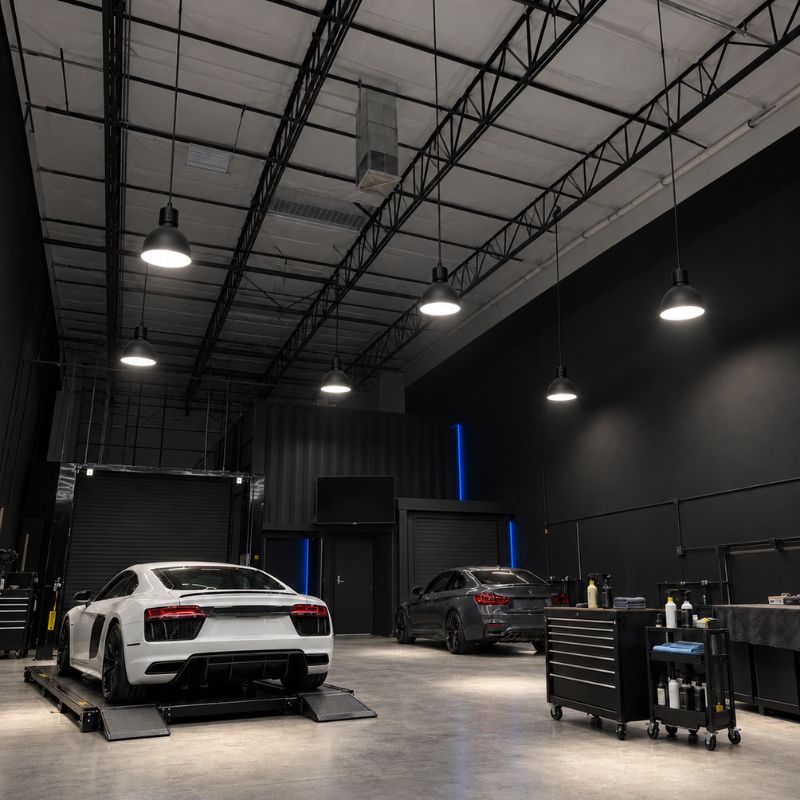

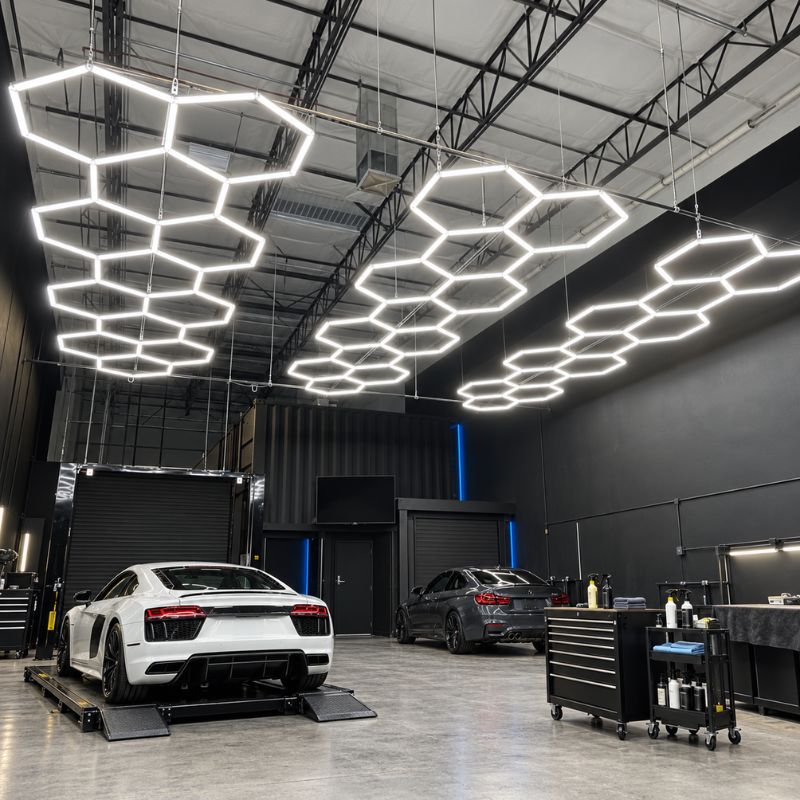

Before: Despite numerous spotlights, the lighting remains concentrated and leaves shadowed areas between vehicles. After: The hexagonal grid covers the entire ceiling and diffuses powerful, homogeneous light throughout the hangar.

The layout of your shed

Surface area, height under framework, type of support: we tell you how many hexagons and how to fix them.

See white kits

Frequently Asked Questions

Warehouse lighting: your questions

High-rise changes three things: density, attachment, and maintenance.

How many hexagons for a hangar?

Start with 0.55 hexagons per m², then add 50% as soon as the height exceeds 3 m. For 200 m² under 5 m, that's about 165 hexagons — height is the determining factor, not surface area alone.

Why do we need so many more signs?

Because light diminishes with distance. At 5 m, a frame dimensioned for 2.50 m gives the impression of gloom on the ground, even if the ceiling itself appears well lit.

How to fix to a metal frame or steel decking?

Always on the supporting structure, never in the sheet metal or in a suspended plate. The fastening material depends on the support: solid concrete, hollow concrete, steel deck, and wooden framework do not require the same anchors.

Should we lower the panels to improve illuminance?

This is an option when the work area is clearly identified: moving the source 1.50 m closer really improves comfort on the ground. But we always maintain the headroom required for vehicles and machinery to pass.

Will my power line support the frame?

This should be checked before purchase. A large frame represents a power that may exceed what the existing lighting circuit can handle. In a professional setting, any work on the electrical panel should be carried carried out by an electrician.

And the maintenance, at 5m high?

It's important to think about this during the design phase. A simple annual cleaning requires a lift or scaffolding: it's better to plan for accessible bays than to discover the problem after installation.

The hangar is open to the public: are there any obligations?

Yes. Any premises open to the public must have independent emergency lighting that takes over in the event of a power outage: an LED array can never serve this purpose. The applicable regulations depend on the type of establishment — have them confirmed by a professional.

Dust, moisture, temperature fluctuations?

An uninsulated shed experiences significant temperature variations and a lot of dust. Observe the indicated mounting distances, and provide an appropriate IP rating in washing areas or areas open to the elements.

Have a question that's not listed here?

Provide us with your surface area and ceiling height, and we'll get back to you with a detailed quote.

Contact us

The Hexeli Landmark

Lighting a high bay warehouse or facility

In a hangar, it's not the surface area that determines the number of panels, but the height. A grid calculated as for a garage gives a feeling of gloom on the ground, even though the ceiling appears well lit.

Three subjects to address before purchasing: density corrected for height, attachment to the actual support, and access for maintenance.

0.55 hex/m² Base
+50% Beyond 3 m
6,500 K Neutral white

The height is critical

Beyond 3 m, allow for 50% more panels for the same surface area. This is not a luxury: it is what separates a well-lit room from one where you have to guess.

Attach to structure

Steel deck, metal frame, suspended panels: we always go back to the supporting structure. The standard screws are not suitable for all types of supports.

Drag the weft to the work area

When an area is identified—repair bay, sorting plan—a partial lowering of 1 to 1.50 m significantly improves comfort, provided that the headroom for vehicles is maintained.

Anticipate access

Annual cleaning recovers a real portion of brightness. At 5 m, it requires equipment: it is better to anticipate it than to give up on it.

Number of hexagons by height
Area Under 3 mBeyond 3 m
100 sq m 5583
1,614.6 sq ft 83124
200 sq m 110165
3,229 sq ft 165248
500 sq m 275413

Base 0.55 hexagon per m², increased by 50% beyond 3 m. Sizing values to be confirmed with your electrician for commercial premises.
